CO2 laser marking machine is suitable for most non-metallic materials and some of the metal marking such as packaging, plastic products, labels, leather, fabrics, glass ceramics, bamboo, wood products, PCB board, etc. Pilot laser help users with the alignment process, it can either show a box or exact contexts that you want to mark on the workpiece. Easy to use focus finder system, enable you to find the correct focal points with no problems, efficient and saves you more time. HBS offer various solutions according to customer needs to integrate marking machines into production lines.

LIKES: 0

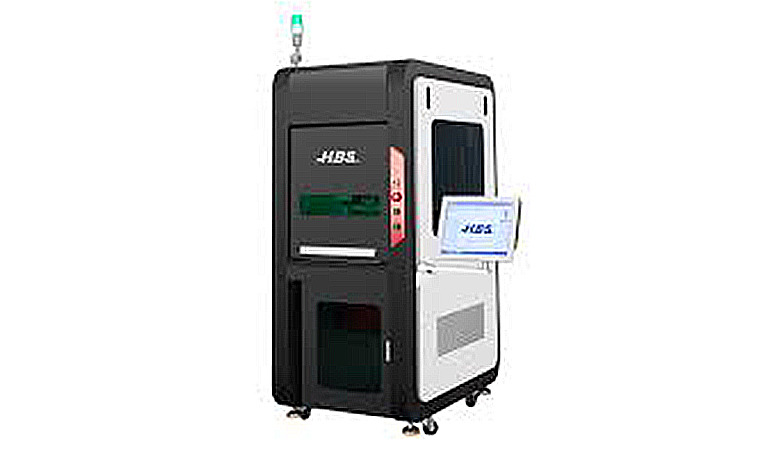

HBS CO2B Series Technical data
Laser power 20W, 30W, 50W, 100W
Laser wavelength 10640nm
Beam quality < 1.5
Repetition frequency ≤ 70 KHz
Marking area 110 x 110 mm
Marking depth ≤ 2 mm (adjustable)

The encolosed design complies with German safety regulations which makes CO2-B especially safe. In-addition, spacious design makes it possible for to mark large objects, and de-attachable side doors allow machine ready to be integrated in to production line. Focus finder system, pilot laser, easy to use software, motorized Z axis, are ready on CO2-B system.
